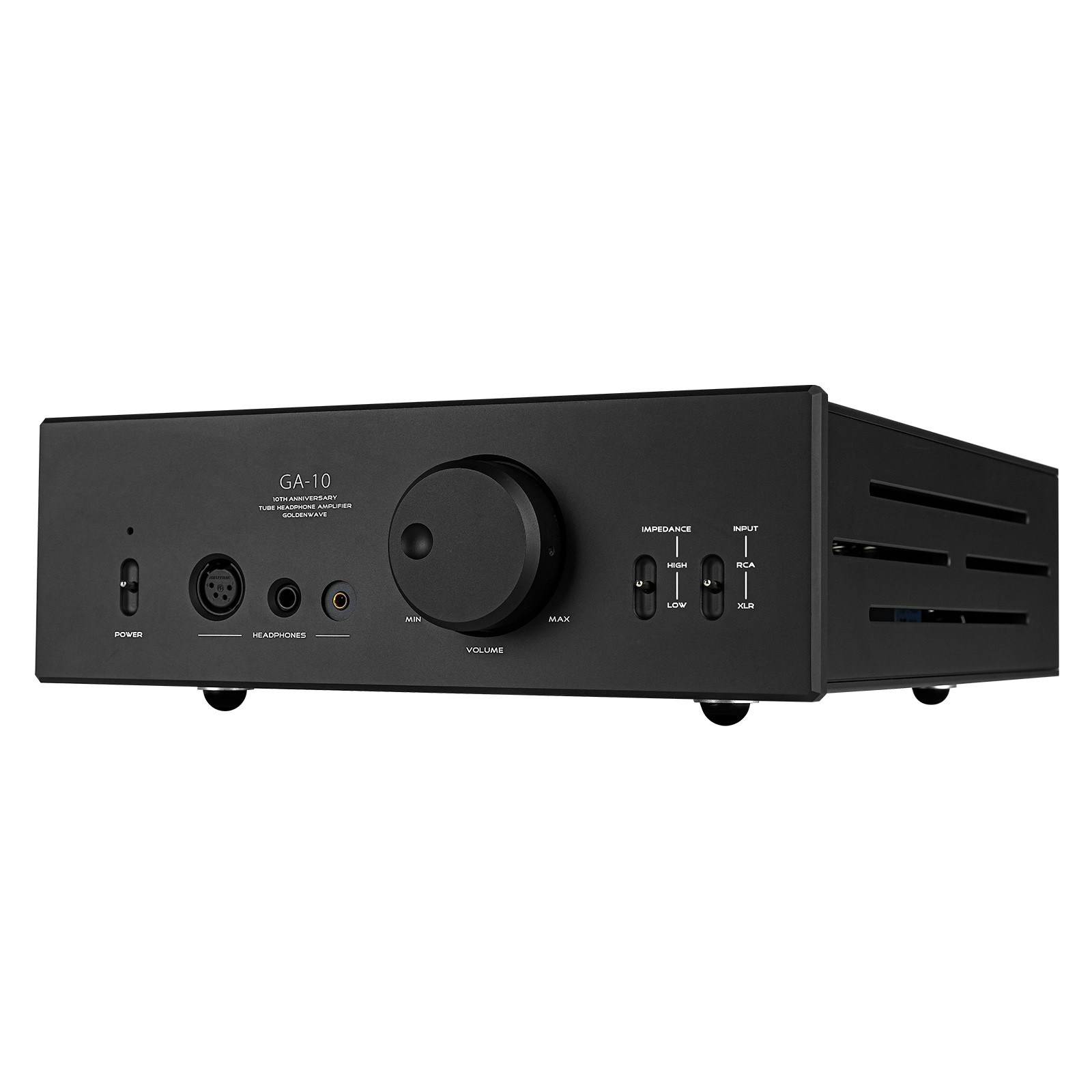

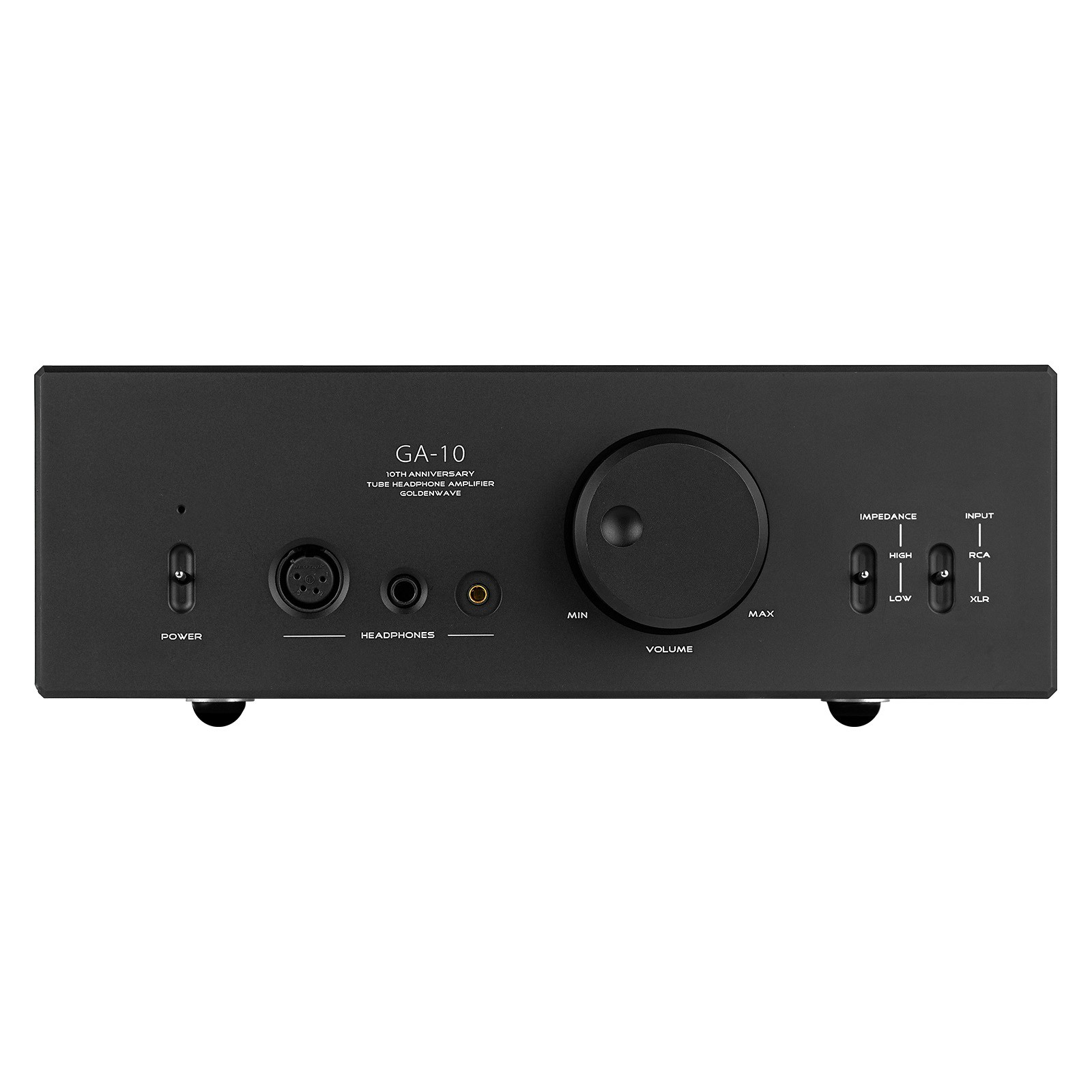

HIFIMAN GOLDENWAVE GA-10 – 10th Anniversary Tube Headphone Amplifier

Key Features at a Glance

• Premium vacuum tube amplifier with SEPP architecture
• Uses ECC83/12AX7 & EL84 tubes for rich analog sound
• Powerful output: 3000mW @ 300Ω / 600mW @ 32Ω
• Balanced outputs: 4-pin XLR & 4.4mm
• 6.35mm single-ended output with impedance matching
• High-quality 120W shielded transformer
• Ultra-low noise voltage amplifier circuits
• Designed for flagship headphones like Susvara & HE1000

Celebrate Pure Tube Sound – 10th Anniversary Edition

The HIFIMAN Goldenwave GA-10 is a special edition tube amplifier created to celebrate a decade of innovation. Designed for serious audiophiles, it delivers warm, detailed, and highly musical sound that only vacuum tube amplification can provide.

Perfectly paired with flagship models like the HIFIMAN Susvara Unveiled, the GA-10 unlocks the full potential of high-end planar magnetic headphones.

SEPP Architecture – Precision Tube Amplification

The GA-10 uses Single-Ended Push-Pull (SEPP) architecture with carefully selected components.

This design ensures:

• Smooth, natural tonal balance
• Excellent control and dynamics
• High clarity across all frequencies

Premium Vacuum Tubes – Rich Analog Character

Equipped with world-renowned tubes:

• ECC83 / 12AX7 (x4)
• EL84 (x4)

These tubes deliver:

• Warm, organic sound signature
• Detailed midrange and smooth highs
• Deep, controlled bass

Experience classic tube sound with modern precision.

High-Quality Power Supply – Stable & Clean Output

The GA-10 features a 120W shielded transformer combined with advanced power regulation.

Benefits include:

• Stable power delivery
• Reduced noise and interference
• Improved sonic clarity

Low-Noise Circuit Design – Pure Audio Signal

Independent voltage amplifier and regulator circuits for each channel ensure:

• Minimal distortion
• Clean signal path
• High-resolution audio performance

Powerful Yet Controlled Output

Despite moderate power ratings, the GA-10 excels in control and musicality.

Output Power

• 3000mW @ 300Ω
• 600mW @ 32Ω

Ideal for:

• High-end planar magnetic headphones
• Complex musical passages
• Detailed, dynamic listening

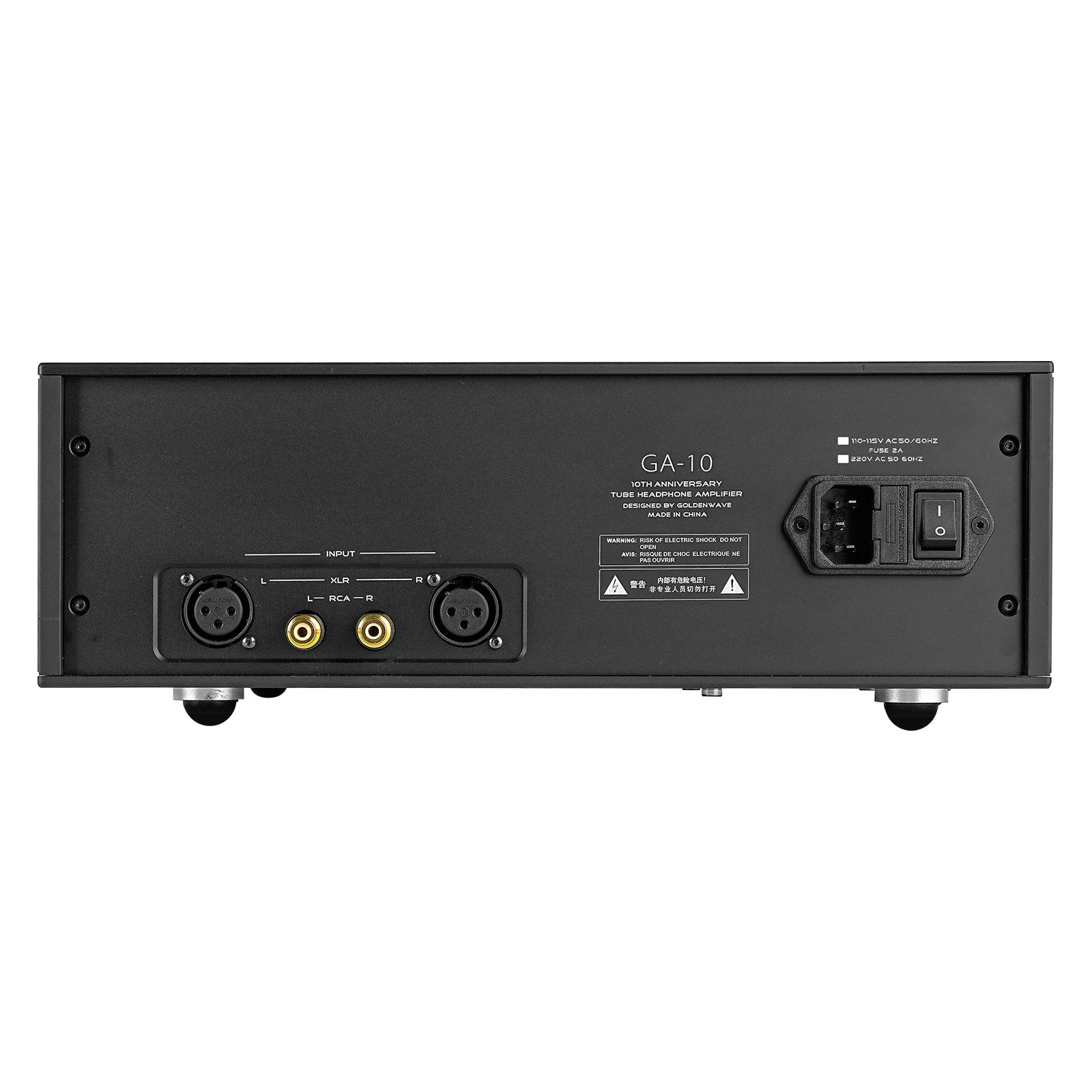

Versatile Connectivity Options

Headphone Outputs

• 4-pin XLR balanced
• 4.4mm balanced
• 6.35mm single-ended (with impedance matching)

Compatible with a wide range of headphones and setups.

Audiophile Sound Performance

• Frequency Response: 20Hz – 24kHz (±0.5dB)
• THD+N: 0.001% @ 1kHz / 300Ω

Delivering clean, accurate, and emotionally engaging sound.

Premium Build & Design

• Solid chassis with high-end components
• Dimensions: 330 × 110 × 380 mm
• Total power consumption: 70W

Built for durability and long-term performance.

What’s in the Box

• HIFIMAN Goldenwave GA-10 Amplifier
• ECC83/12AX7 Tubes (x4)
• EL84 Tubes (x4)
• Manufacturer warranty

Experience the Magic of Tube Amplification

The HIFIMAN Goldenwave GA-10 delivers true audiophile-grade tube sound, combining warmth, clarity, and precision in one exceptional amplifier.
